Product Introduction
This product adopts Ex d b explosion-proof design and is suitablefor various Zone l & Zone 2 gas explosion-proof industrial sites suchas petroleum, petrochemical, steel, shipbuilding, power, portterminals, wastewater treatment, paper mills, etc. The product alsocomplies with the GB/T3836.31-2021 dust explosion-proof standardand is applicable to Zone 21l & Zone 22 dust explosion-proof sites.
The single lamp controller has the functions of online lamp switching,dimming and electrical parameter reading. When the single lampcontroller is unexpectedly offline, the controlled lamps will immediatelyswitch to full brightness to ensure that the lighting is not affected.The single lamp controller uploads real-time status data. Once a lampfails, the system software responds promptly and clearly presents thedetails of the failure in an intuitive manner.
Technical Specifications
| Explosion-proof Mark: | Ex db ⅡC T6 Gb；Ex tb IIIC T80℃ Db |
| Working temperature: | -40℃～+50℃ |
| Working voltage: | AC100-242V |
| Rated current: | ≤20W |
| Load power: | ≤500W |
| Protection level: | IP66 |
| Corrosion protection grade: | WF2 |
| Communication method： | Lora、Power Line Carrier |
| Product material: | 316L |
| Product weight: | 5.5kg |
| Entry method: | M25×1.5 |

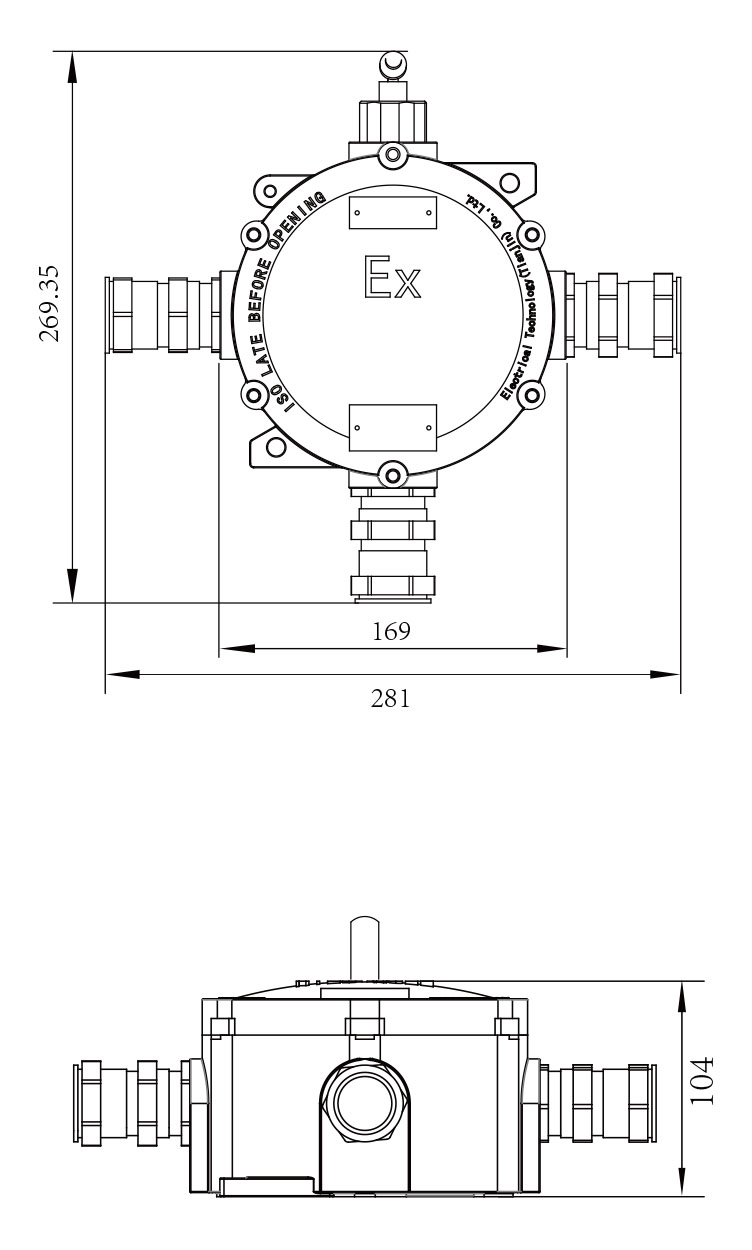

Product dimensions
