    Intelligent Electric Heat Tracing

    Tongxin Heat Tracing Intelligent Control and Energy saving Solution takes "precise temperature control, efficient energy saving, and intelligent operation and maintenance" as its core values. By leveraging the independently developed self-limiting temperature control power supply system it achieves ±1℃ precise temperature control, breaking the limitation of large temperature fluctuations in traditional relay control. The solution is applicable to oil pipelines, storage tanks, valves, pressure regulating stations, gas pipelines, LNG equipment and other places in the petrochemical industry, meeting the needs of different industrial scenarios. The solution utilizes wireless communication to transmit data in real time, dynamically match heating demands with power output, and through AI diagnosis and local visual monitoring, promptly obtain early warnings of abnormal power consumption, leakage, or temperature control failure. It builds an intelligent thermal management network featuring multiple synergies collaboration, promoting the transformation and leap of industrial thermal management from extensive insulation to efficient and low-carbon digital transformation.
      Drilling Rigs
      Refineries
      Transportation
      Food Processing
      Storage Tanks
      Commercial & residential

      Powerful Foghorn

      ————————

      Technical Principle

      ————————

      Self-limiting temperature control power supply system

      Traditional temperature-controlled switch-type constant-power heating tapes or self-limiting temperature heating tapes usually adopt a redundant heating design with a heating temperature higher than the insulation temperature of the pipeline. The higher the pipeline temperature is above the ambient temperature, the greater the heat loss and the more electricity is consumed.

      The intelligent control and energy-saving embedded self-limiting temperature regulation system of Tongxin heat tracing technology adjusts the output power in real time based on the dynamic changes of pipeline temperature. When it detects a significant deviation between the actual temperature and the set value, it automatically increases the output power to accelerate the heating process. When the temperature approaches the set value, the system automatically reduces the power while maintaining precise temperature control within ±1℃, effectively eliminating the impact of frequent on-off operations of traditional temperature control switches on the power grid, and reducing peak load and energy consumption fluctuations.

      The self-limiting temperature control system is controlled by an electronic power control module.Unlike traditional mechanical temperature control switches, it does not experience aging or wear, ensuring more stable and reliable temperature control with a longer service life.


      Networking form
      It is composed of a system upper computer, a gateway, and an explosion-proof electric heat tracing intelligent control data transmission base station. It achieves ultra-long-distance stable communication through LoRa or 4G wireless communication modules, meeting different application scenarios in factories.
      列表图

      Smart Networking Edition

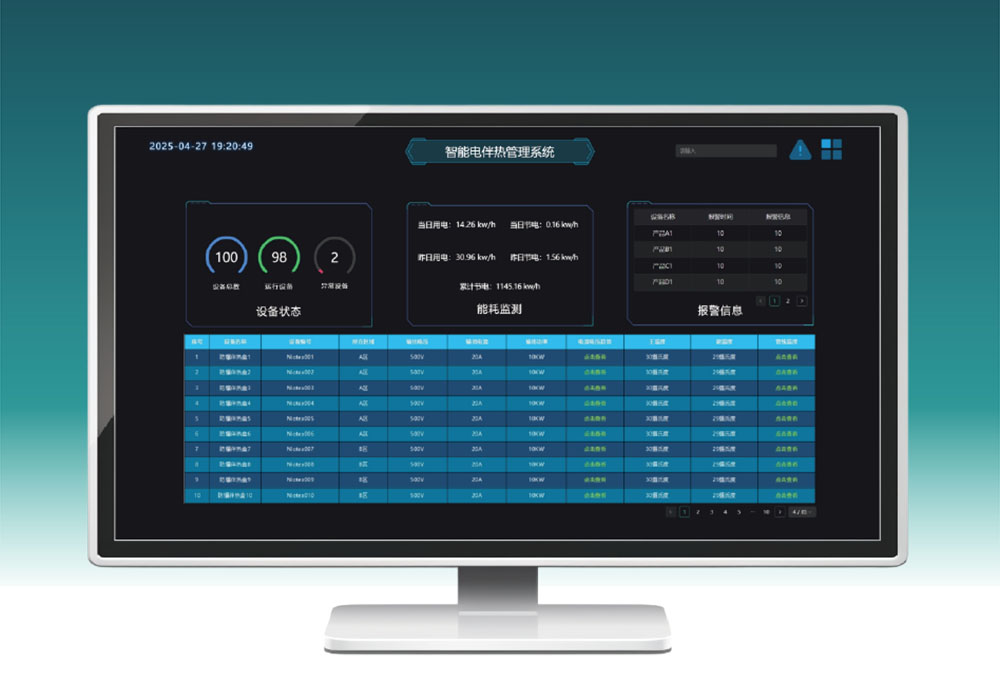

      Administrators can centrally manage all heating cables through the intelligent management system, which enables linkage analysis and real-time assessment of their operating status. When faults such as open circuit, short circuit, power supply anomaly, pipeline low temperature, or overload are detected, the system immediately triggers an alarm and reports it to the host computer.
      列表图

      Standalone Flexible Edition

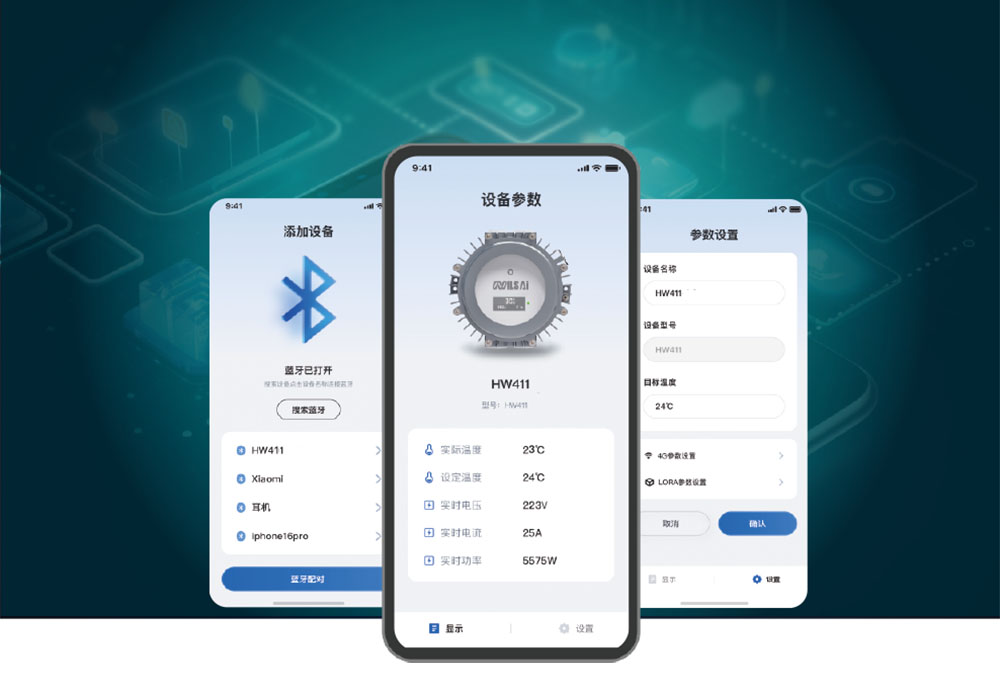

      A regular smartphone can download the management app and, when near the heating base station, connect to it via Bluetooth to achieve precise management of the heating cable.
      View and download the Intelligent Electric Heat Tracing product brochure, demonstration video, and related component manuals.

      Why Choose Us

      ————————
      High
      temperature
      control
      accuracy
      High-precision temperature sensor measurement module and self-limiting temperature regulation algorithm, which can dyna-
      mically adjust the output
      power, and the temperature control accuracy can reach ±1℃.
      Multiple
      security
      protections
      An abnormality alarm for the temperature sensor has been triggered. At the same time, through the combined analysis of multiple parameters such as current, voltage, and temperature, the working status of the heating tape can be determined in real time. When faults such as open circuit, short circuit, abnormal power supply, low temperature of the pipeline, or overload are detected in the heating tape, an alarm will be triggered immediately and reported to the host computer, enabling rapid detection and location,
      Multimode
      flexible
      control
      When used in conjunction with the upper computer software, it can freely switch between three modes-constant temperature, industrial temperature control, and power limitation-according to actual requirements.
      High
      efficiency
      and energy
      saving
      Compared to other thermostats, the annual electricity consumption can be saved by more than 10%-30%, and the results of cost reduction and efficiency improvement are remarkable.
      High
      stability
      and
      reliability
      High-precision temperature sensor measurement module and self-limiting temperature regulation algorithm, dynamically adjust the output power, and the temperature control accuracy can reach ±1℃.
      Human
      computer
      interaction
      and remote
      manage-
      ment
      Real-time temperature, power, alarm and other statuses can be observed on-site or remotely through the high brightness LCD screen /APP/ upper computer, and operations such as parameter modification can be carried out.

      Software Introduction

      ————————
