NF501（High luminous efficacy）
Explosion-proof design, intelligent control, energy-saving and environmentally friendly
Technical Specifications
| IECEx/ATEX: | Ex db ⅡB T4/T6 Gb；Ex tb ⅢC T130℃/T80℃ Db |
| GBEx-mark: | Ex db ⅡB T4/T6 Gb；Ex tb ⅢC T130℃/T80℃ Db |
| Ambient temperature: | -40℃～+60℃ |
| Rated power: | 100W/150W/200W/240W |
| Voltage range: | AC100～242V |
| Power factor: | ≥0.98 |
| Frequency: | 50/60Hz |
| Luminous flux: | 16390lm/24580lm/32780lm/39330lm |
| Luminous efficacy： | ≥163.9lm/w |
| CRI： | >80 |
| CCT： | 5700K/3000K |
| IP grade： | IP66 |
| Anti-corrosion grade: | WF2 |
| Temperature class： | 100W：T6； 150W/200W/240W：T4 |
| Material： | Copper-free aluminum |
| Weight： | 17kg |
| Cable entry： | 2×M25 |
| Installation method： | Wall mounted installation |

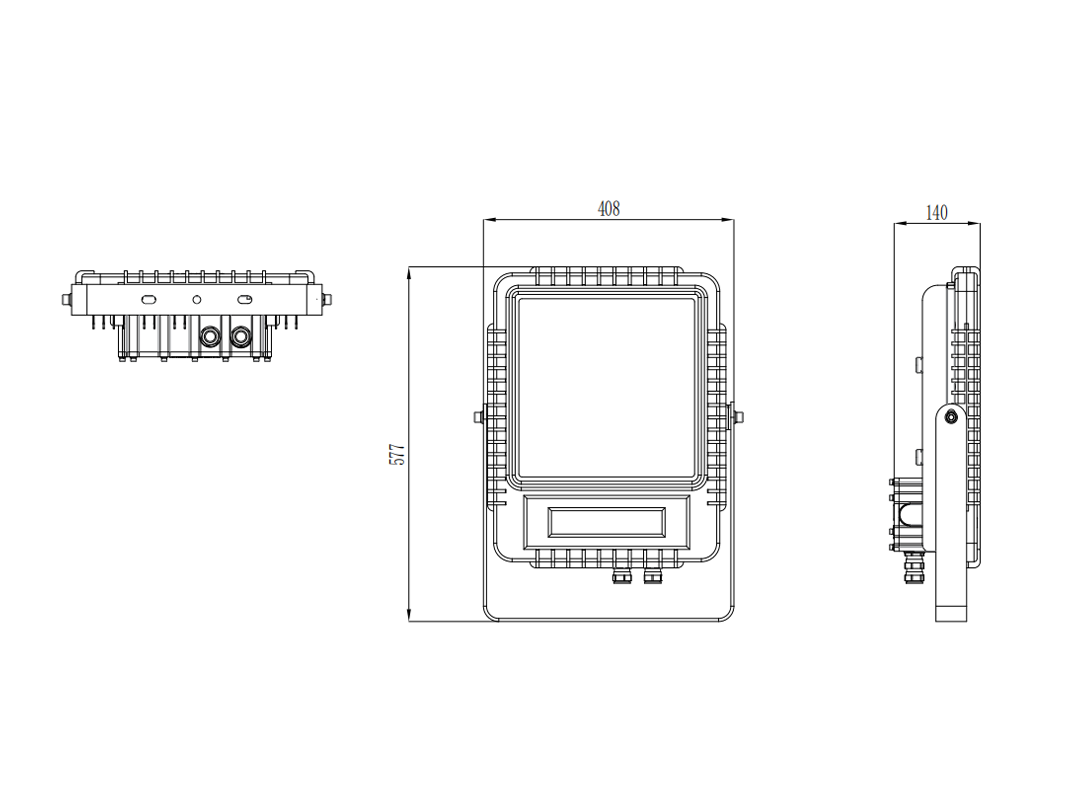

Product size drawing
