Product Introduction
It can be used as a data transmission base station for smart lighting systems.
- Heterogeneous Network Adaptation: As the communication hub betweenLoRa devices and Ethernet, it accomplishes the bidirectional conversionbetween the LoRa protocol and the TCP/lP protocol, enabling seamlessconnection between low-power terminals and the Internet.
- Multi-node management: Supports large-scale terminal access (a singlegateway can manage thousands of nodes), reduces signal conflicts throughdynamic channel allocation, and optimizes network load.
- Data aggregation and forwarding: Receive data information from LoRa terminals,aggregate it, and then wirelessly transmit it back to the server to reduce transmission delay.
- Edge computing capability: Local preprocessing of raw data (such as filtering.compression), reducing the computing load on the cloud.
- System integration capability: Connect with the smart lighting system platformto achieve scene-based linkage.
Server performance
| Product model： | HW112 |
| Order Code： | HW112-LX |
| Explosion-proof Mark： | Ex db llc T6 Gb；Ex tb lllc T80℃ Db |
| Rated voltage： | AC 100~242V |
| Network interface： | RJ45 |
| Protection level： | IP66 |
| Material： | Without copper or aluminum or 31 |
| Working temperature： | -40~+60℃ |

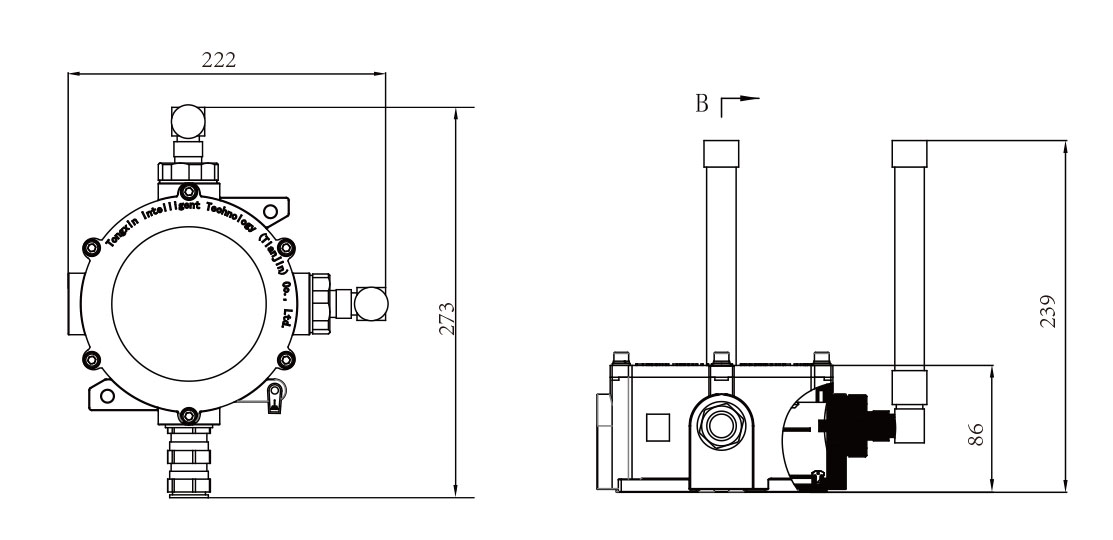

Product dimensions
