Product Introduction
This product adopts Ex d b explosion-proof design and is suitable for various Zone 1 & Zone 2 gas explosion-proof industrial sites such as petroleum, petrochemical, steel, shipbuilding, power, port terminals, wastewater treatment, paper mills, etc. The product also complies with the GB/T3836.31-2021 dust explosion-proof standard and is applicable to Zone 21 & Zone 22 dust explosion proof sites. The main function of the detector is to serve as a monitoring device for the intelligent lighting system, playing a crucial role in achieving intelligent lighting control. By detecting the ambient light level in the site and sensing human presence, it enables automatic control of the brightness of lighting equipment based on the current ambient light level, as well as functions such as turning on the lights when people are present and turning them off or dimming when people leave.
Technical Specifications
| Explosion-proof Mark： | Ex db ⅡC T6 Gb；Ex tb ⅢC T80℃ Db； |
| Working temperature： | -40℃~55℃ |
| Working voltage： | AC220V |
| rated current： | ≤0.2A |
| Protection level： | IP66 |
| Switching output： | 2 groups |
| Communication method： | Lora、Power Line Carrier |
| Product material： | Stainless steel316L |
| Product weight： | 5.5kg |
| Entry method： | M25×1.5 |

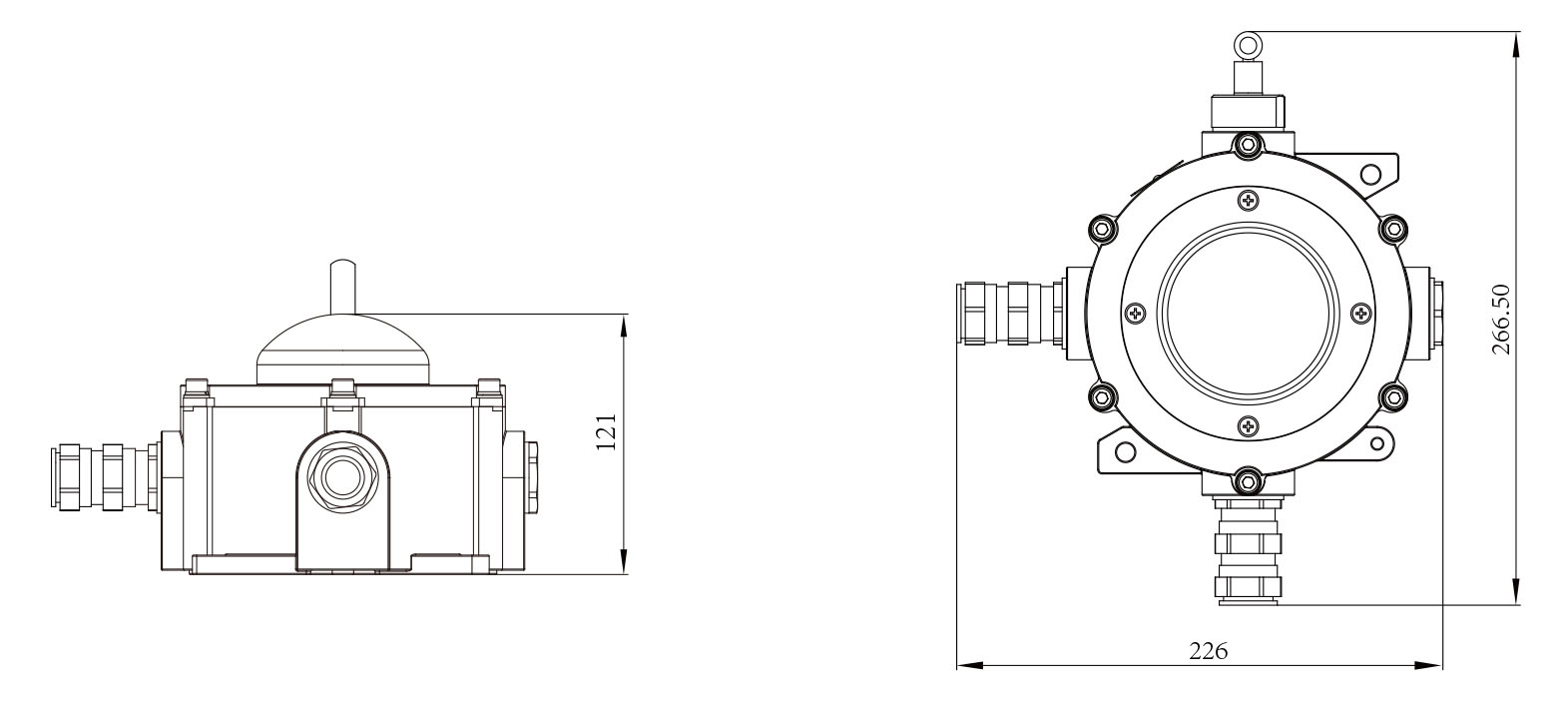

Product dimensions
