NE410
Explosion-proof design, intelligent control, energy-saving and environmentally friendly
Technical Specifications
| IECEx/ATEX: | Ex db eb ⅡC T6 Gb；Ex tb ⅢC T80℃ Db |
| GBEx-mark: | Ex db eb ⅡC T6 Gb；Ex tb ⅢC T80℃ Db |
| Ambient temperature: | 40℃～+55℃(20W/30W/50W)；-40℃～+40℃(60-100W) |
| Rated power: | 30W/50W/60W/70W/80W/90W/100W |
| Voltage range: | AC100～242V |
| Power factor: | ≥0.98 |
| Frequency: | 50/60Hz |
| Luminous flux: | 3903lm/6500lm/7812lm/9107lm/10408lm/11709lm/13020lm |
| Luminous efficacy： | ≥130Lm/w |
| CRI： | >80 |
| CCT： | 5700K/3000K |
| IP grade： | IP66 |
| Anti-corrosion grade: | WF2 |
| Temperature class： | T6 |
| Material： | aluminium alloy |
| Weight： | ≈4.5kg |
| Cable entry： | 2×M20 |
| Installation method： | Wall mounted installation |

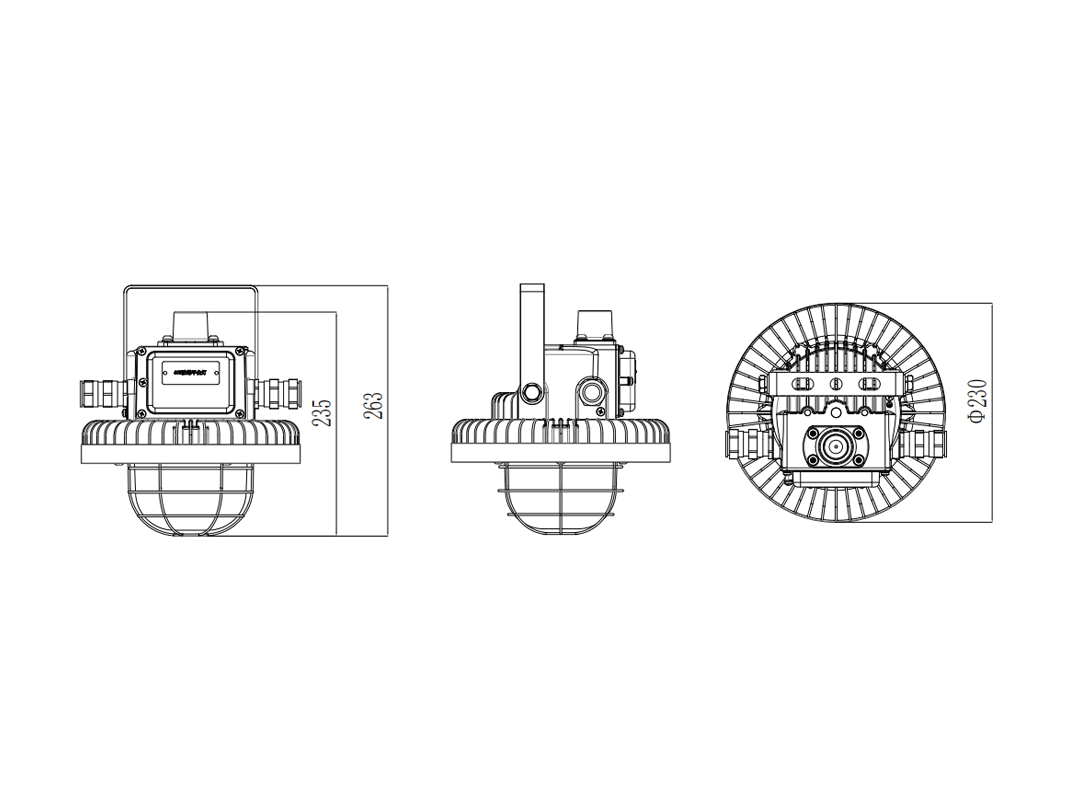

Product size drawing
