NC100
Explosion-proof design, intelligent control, energy-saving and environmentally friendly
Technical Specifications
| IECEx/ATEX: | Ex db eb mb ⅡC T6 Gb；Ex tb ⅢC T80℃ Db Ex db eb mb [ib] ⅡC T6 Gb；Ex tb ⅢC T80℃ Db(Emergency) |
| GBEx-mark: | Ex db eb mb ⅡC T6 Gb; Ex tb ⅢC T80°C Db |
| Ambient temperature: | -40°C ~ +55°C |
| Rated power: | 30W/50W/70W |
| Emergency luminous flux: | ≥1800lm |
| Voltage range: | AC100～242V |
| Power factor: | ≥0.98 |
| Emergency duration: | ≥90min |
| Frequency: | 50/60Hz |
| Luminous flux: | 3600lm/6050lm/8450lm |
| Luminous efficacy： | ≥121Lm/w |
| CRI： | >80 |
| CCT： | 5700K/3000K |
| IP grade： | IP66 |
| Anti-corrosion grade: | WF2 |
| Temperature class： | T6 |
| Material： | Copper-free aluminum |
| Weight： | 13kg/14kg(Emergency) |
| Cable entry： | 4 ×M20 |
| Installation method： | Ceiling / Hoop |

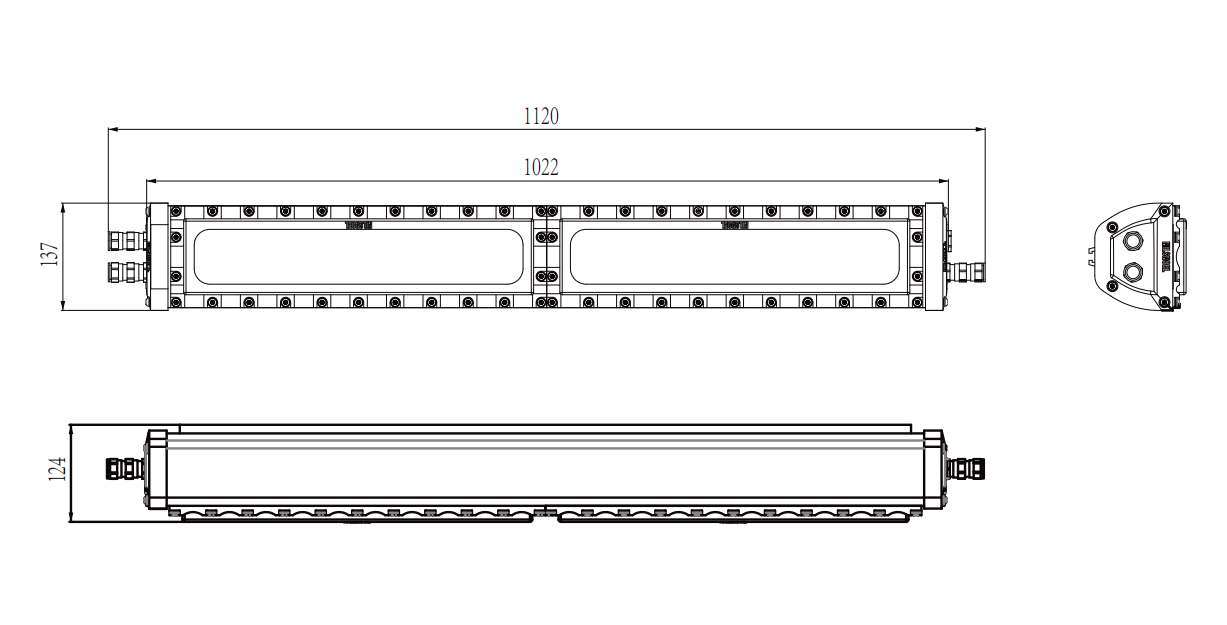

Product size drawing
